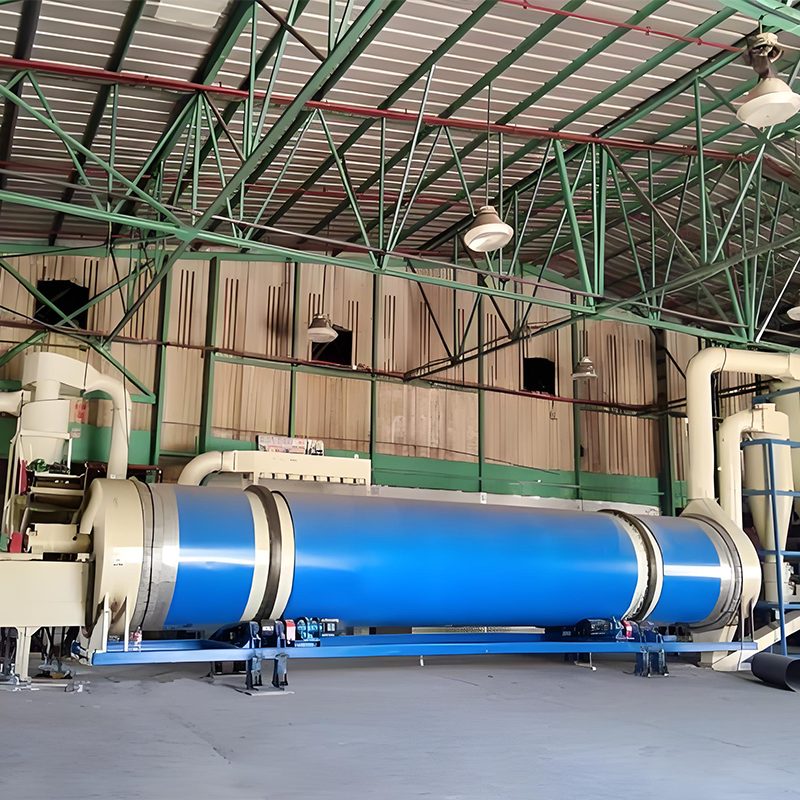

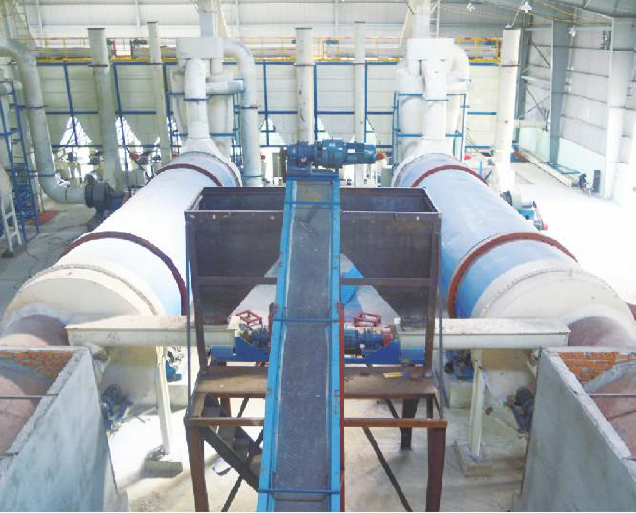

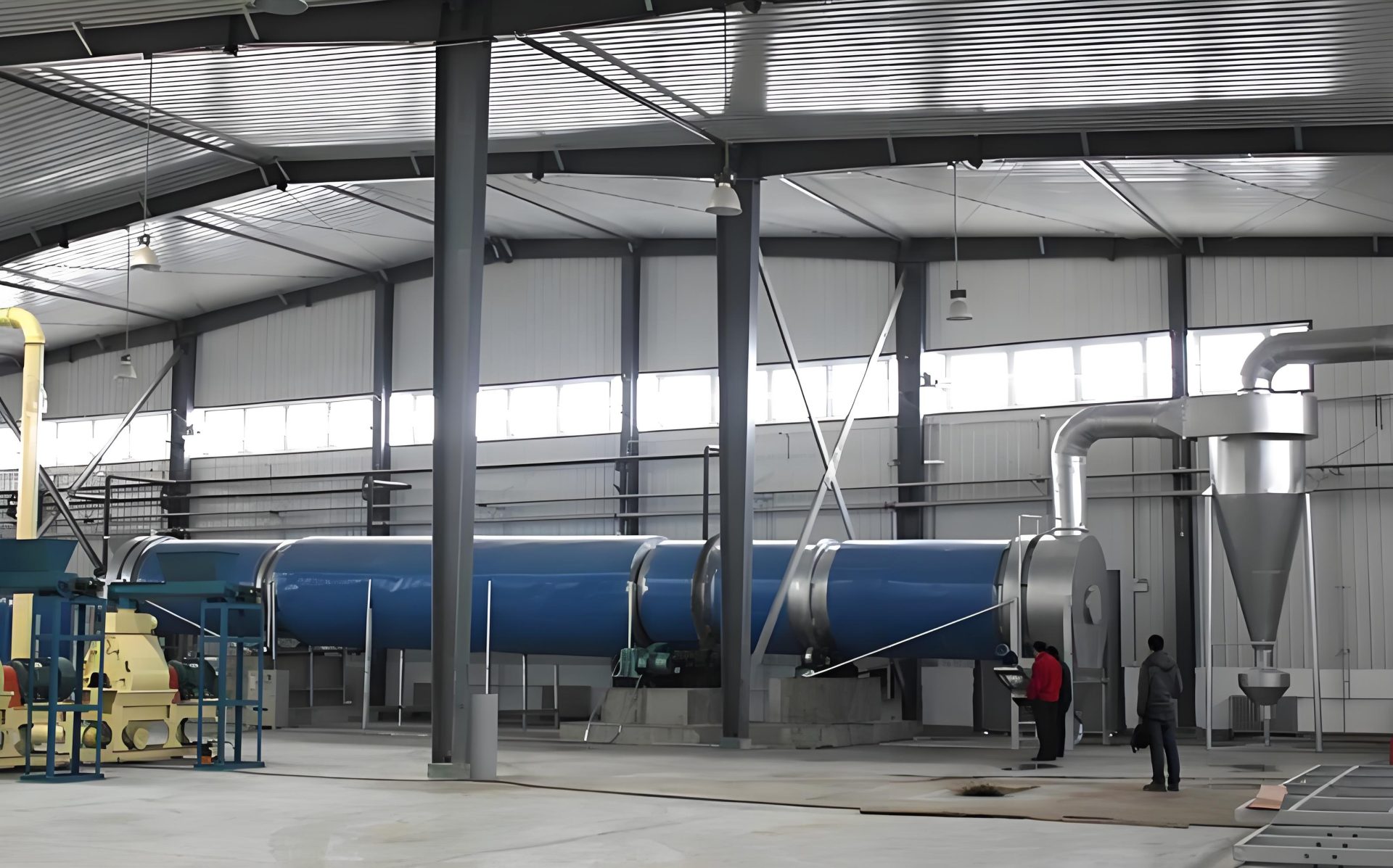

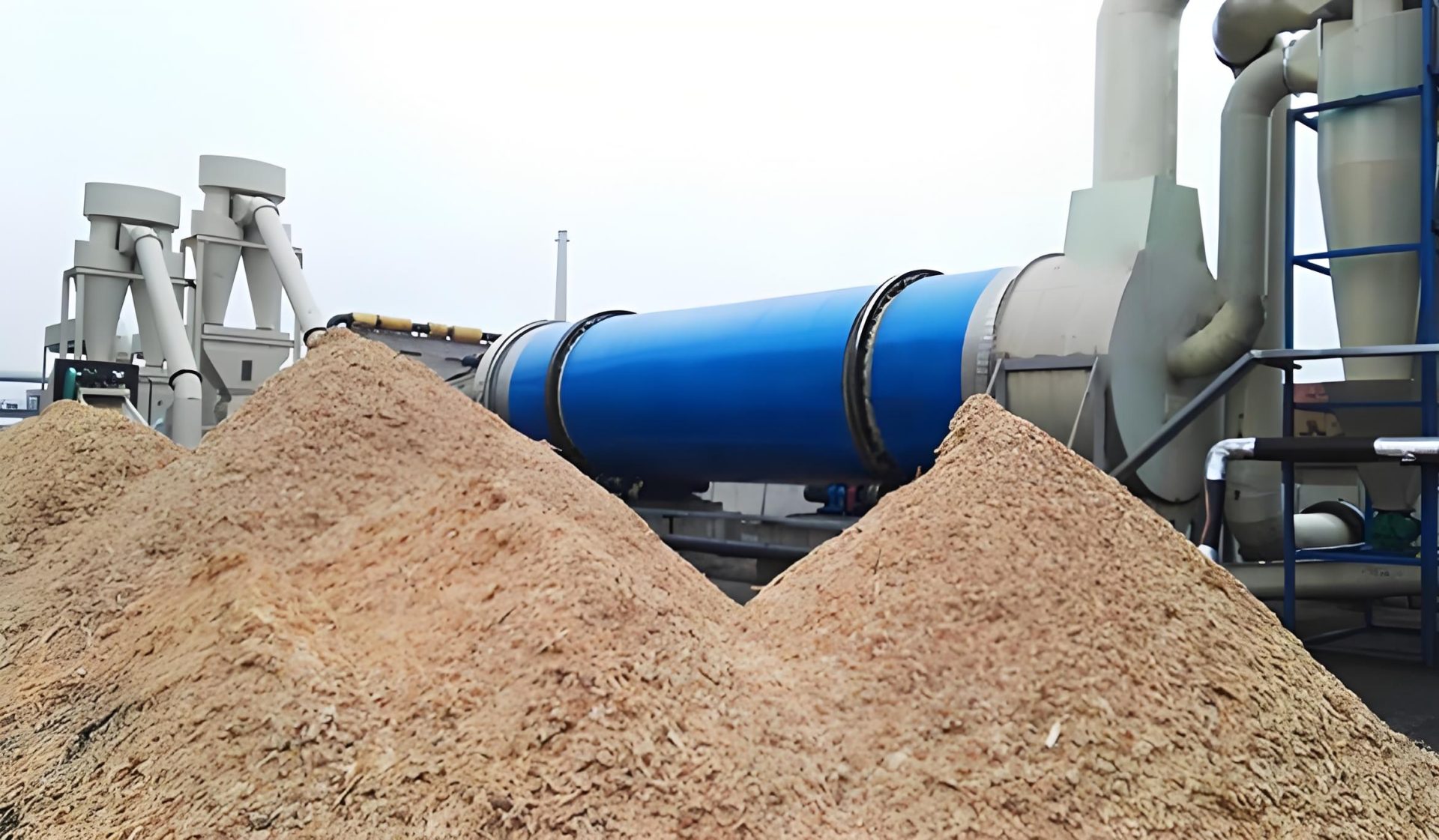

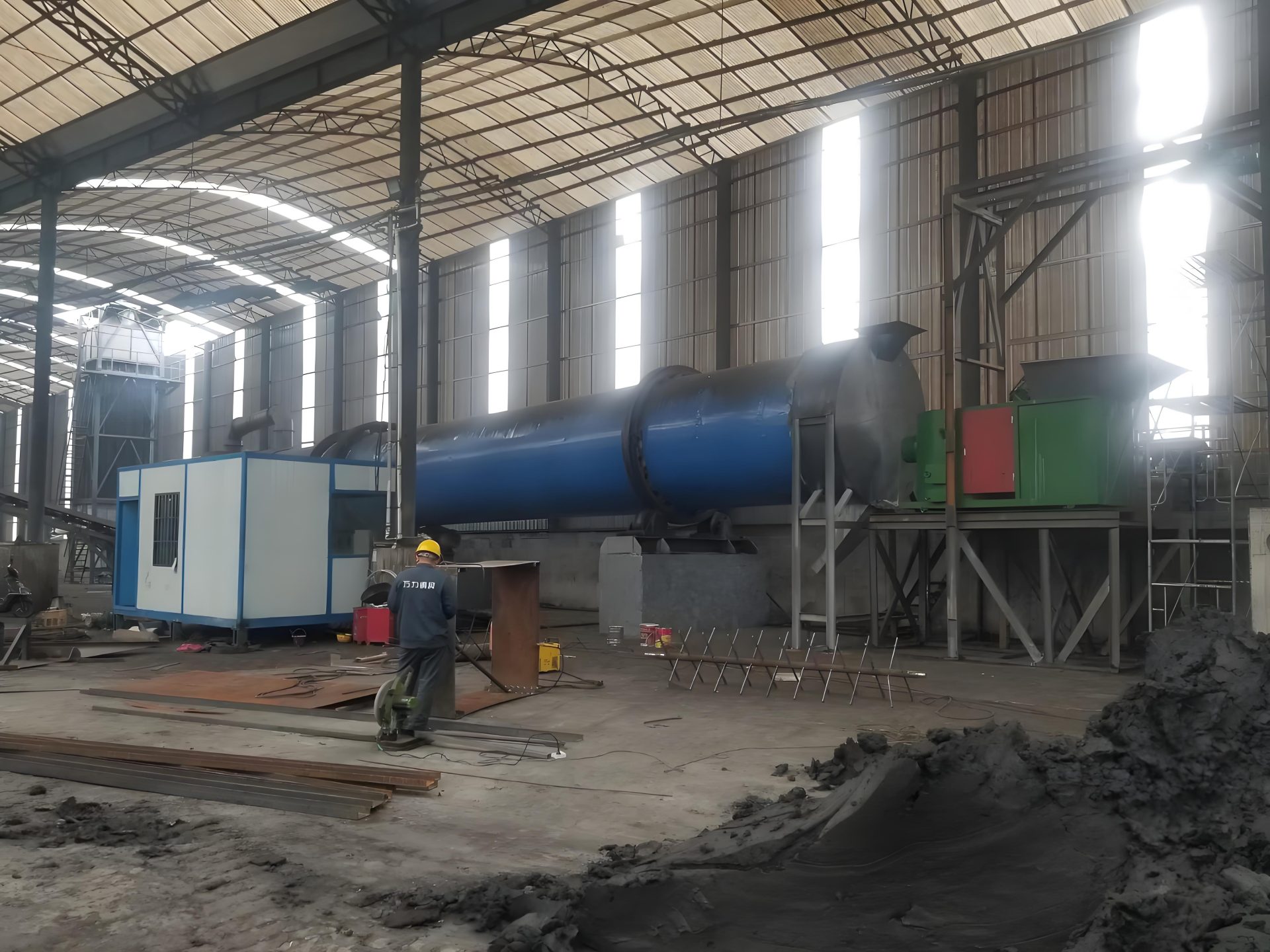

Description
Drum dryer is suitable for drying powder, granular, small irregular materials, a wide range of application scenarios, with strong drying ability, stable operation, low energy consumption, simple operation, large production capacity and other advantages.
According to customer material type, moisture drying requirements, site requirements. single drum or triple return dryer can be choose.
Types of drying materials: wood sawdust, wood chips, straw, palm wood, palm EFB, bana grass, Suger cane bagasse, etc.
Features
※ Low-cost heat source raw materials: wood sawdust, bark and other biomass raw material waste can be used as a heat source.
※ : Water online monitoring device can be configured.
※ :Optional spark monitoring and fire extinguishing device.
※ : Single drum and triple return can be selected.
※ : Equipped with rock wool insulation layer, reduce energy consumption and improve drying efficiency.
Technical Description
| Model | Power(KW) | RotatingSpeed（R/M） | Air Temperature（℃） | Capacity（T/H） |
| HXSH-1500 | 7.5 | 3-8 | ≤700 | 2-4.5 |
| HXSH-1800 | 15 | 3-8 | ≤700 | 4-8 |
| HXSH-2200 | 18.5 | 2-6 | ≤800 | 5-15 |
| HXSH-2400 | 22 | 2-6 | ≤800 | 10-20 |
| HXSH-2600 | 37 | 1.5-6 | ≤800 | 15-30 |
| HXSH-2800 | 45 | 1.5-6 | ≤800 | 20-50 |
| HXTH18*40 | 3*2 | 2-7.5 | ≤700 | 2-5 |
| HXTH20*60 | 5.5*2 | 2-7.5 | ≤700 | 4-8 |
| HXTH27*70 | 7.5*4 | 2-7.5 | ≤800 | 5-15 |
| HXTH36*80 | 15*4 | 2-7.5 | ≤800 | 10-40 |
