Performance

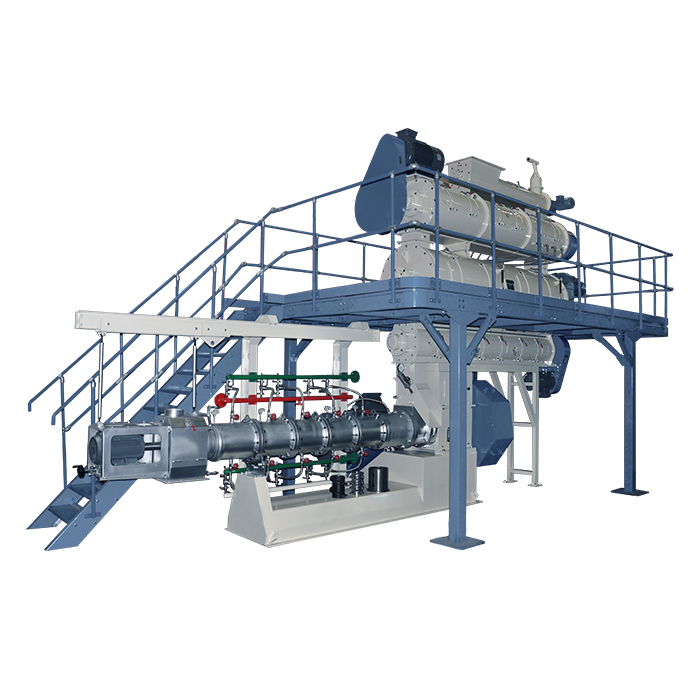

Hexie single screw extruder
Hexie single screw extruder machine is a classic extruding equipment, through the screw and cylinder friction on the material to form the material promotion, extrusion, simple structure, stable running, with the lowest running costs to produce high quality feed. The whole machine is composed of anti-arching accurate feeding system, DDC double-axis differential conditioning system, steam and liquid adding system, extruding system etc, which is one of the most stable extruding technology on the market.

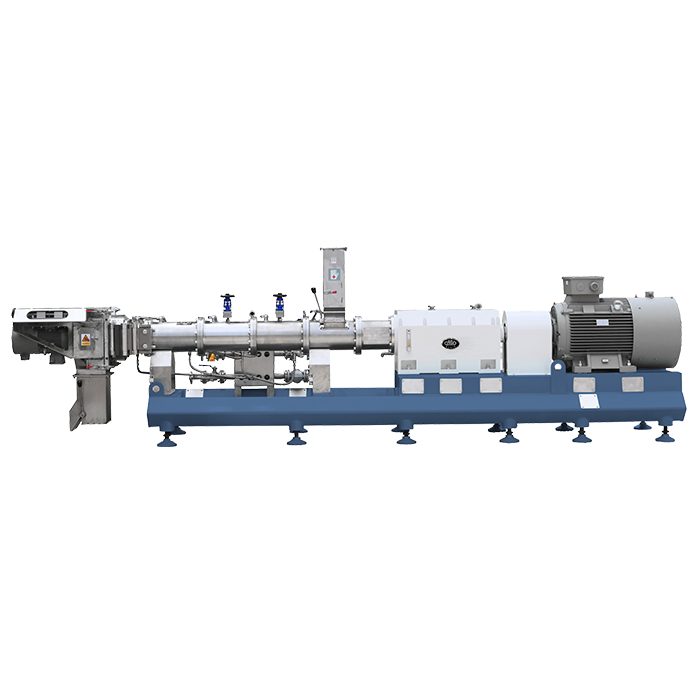

Hexie twin-screw extruder
Twin-screw extruder screw section is "8" shape, the promotion and extruding of the material are completed between the two screws through the meshing and separation movement of the two screws, the material is not easy to bond, not easy to produce countercurrent, generally can be adjusted screw speed according to the characteristics of the material during processing. The twin-screw extruder has the advantages of strong adaptability, sliding transport and self-cleaning, It is generally used in the production of aquatic feed with high added value and high fat, also used in the production of pet food containing high meat pulp or fresh meat.
Technical Description
| Number of screw | Single screw | Twin-screw | ||||
| Model | EX135 | EX165 | EX200 | EX400 | EX138×2 | EX158×2 |
| Screw diameter(mm) | 135 | 165 | 190 | 235 | 138×2 | 158×2 |
| Conditioning power(kw) | 2.2×2 | 7.5 | 11 | 18.5 | 18.5×2 | 22×2 |
| Main power(kw) | 55/75 | 110 | 160 | 315 | 200 | 315 |
| Cutter power(kw) | 3 | 3 | 4 | 7.5 | 5.5 | 11 |
| Capacity(t/h) | 0.6-1 | 1.5-2.5 | 4-6 | 8-10 | 4-7 | 9-12 |
